Integrate with PLM / SPDM

As a collaborative engineering platform, pSeven Enterprise is designed for automating complex simulation workflows and executing them in the cloud. All workflows are executed server-side in various predefined runtime environments with scalable resource management. All of that makes pSeven Enterprise a reliable backbone for PLM / SPDM systems in terms of handling simulation workflows.

Workflow

Boost PLM / SPDM systems

with enhanced simulation workflow execution

Many PLM / SPDM systems on the market provide functionality for execution of simulation in one way or another. But it is often limited to batch execution of a single software, doesn't support complex workflow logic and lacks Design Space Exploration capabilities, as this is not the primary purpose of such systems, unlike streamlining business processes, traceable storage of design data and requirements management.

As a collaborative engineering platform, pSeven Enterprise is designed for assembling and executing complex simulation workflows - both in the cloud. All workflows are executed server-side in predefined runtime environments with scalable resource management. All of that makes pSeven Enterprise a reliable backbone for PLM / SPDM systems in terms of handling simulation workflows.

workflow

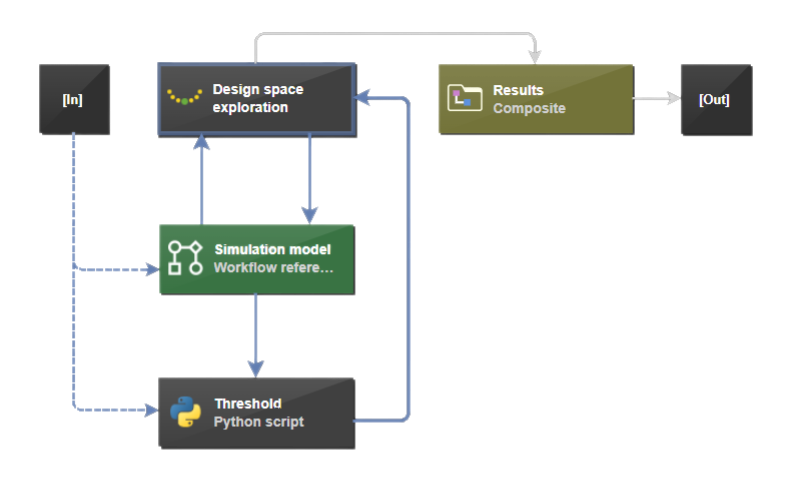

Example of a simulation workflow with design optimization study

Facilitate SPDM adoption by engineering teams

User adoption of SPDM systems can be challenging as it is often seen as a burden by engineering domain experts, who may even consider it as an additional useless bureaucracy, often resulting in repetitive manual simulation data management. With pSeven Enterprise there is no need for domain experts to step out of engineering framework to manage data as it can be easily automated.

At the same time, seamless integration with simulation workflows allows project managers to use SPDM transparently, knowing which workflow with which version was used to produce the results.

In addition, pSeven Enterprise naturally holds the simulation context information, like user data (ex. who runs what) or which application with which version was used. This context information can then be captured in SPDM system as additional metadata.

domain

Domain experts

  • Works in pSeven Enterprise environment.
  • Required data objects are pulled from PLM / SPDM to workflows automatically.
  • Simulation results are pushed and saved to PLM / SPDM automatically.
experts

Project managers

  • Create and manage processes in the PLM / SPDM environment.
  • Consider workflows in pSeven Enterprise as ready subprocesses with context information.
  • Can't modify, but able to execute workflows directly from the PLM / SPDM environment.

Access to PLM / SPDM data in simulation workflows

Throughout the product lifecycle input data and requirements change frequently. This leads to the need to rerun the simulations over and over again. Workflows in pSeven Enterprise not only allow capturing the processes, but automatically executing them over any number of input configurations, which leads to significant time savings and traceable results.

In pSeven Enterprise, a single block can ensure bi-directional communication with PLM / SPDM systems to automatically pull the latest input data and push back the results. This block can be stored in a centralized library to be accessible to every user and linked to any other block of simulation workflows.

Example of a workflow connected to SimData Manager, the SPDM system by PDTec, via a dedicated connector block:

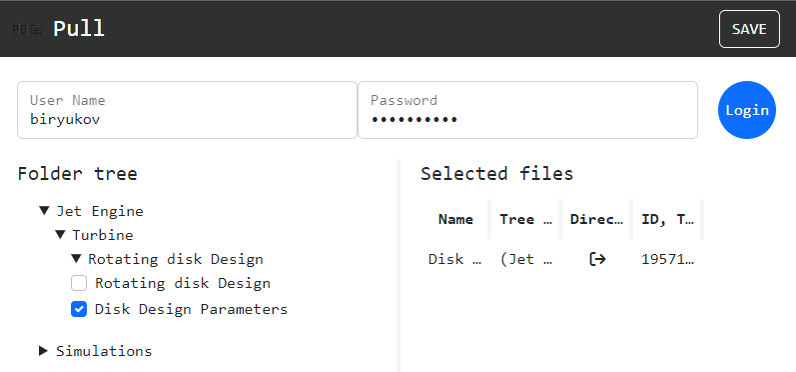

Pull data from SPDM

Pull required data objects from SPDM

trending_flat
Extend

Workflow connected to SPDM

trending_flat

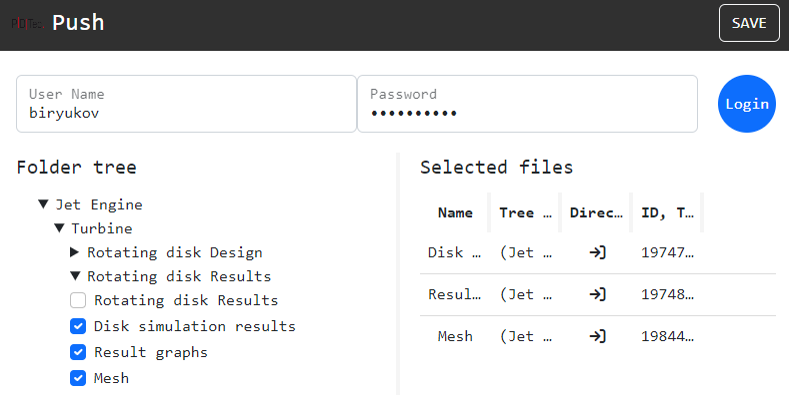

Push data to SPDM

Push results back to SPDM

Execute simulation workflows from PLM / SPDM

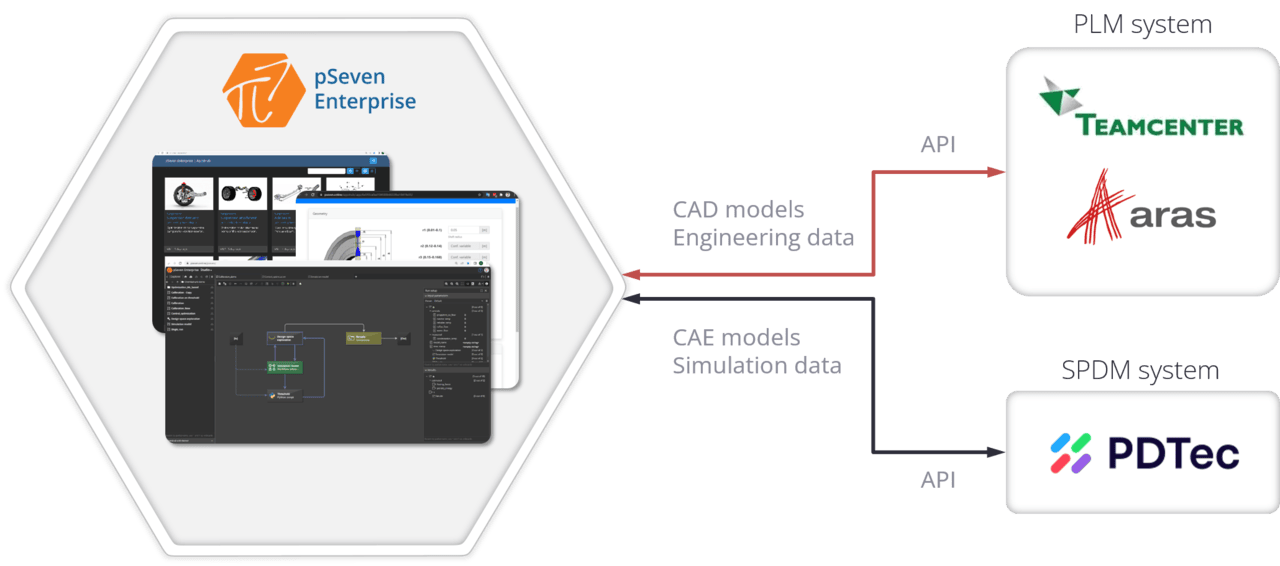

pSeven Enterprise can act as a universal connector for PLM / SPDM systems to a zoo of 3rd party or in-house simulation software and models, standalone or combined into multidisciplinary workflows. Packaged as version-controlled web apps accessible via REST API, all simulation workflows are executed server-side in predefined runtime environments with scalable resource management. This makes formalized simulation methodologies available through straightforward link in tools, for example, like Aras Innovator, Siemens Teamcenter, SimData Manager or in-house systems.

teamcenter aras pdtec

...

In-house or other

PLM / SPDM system

sync_alt

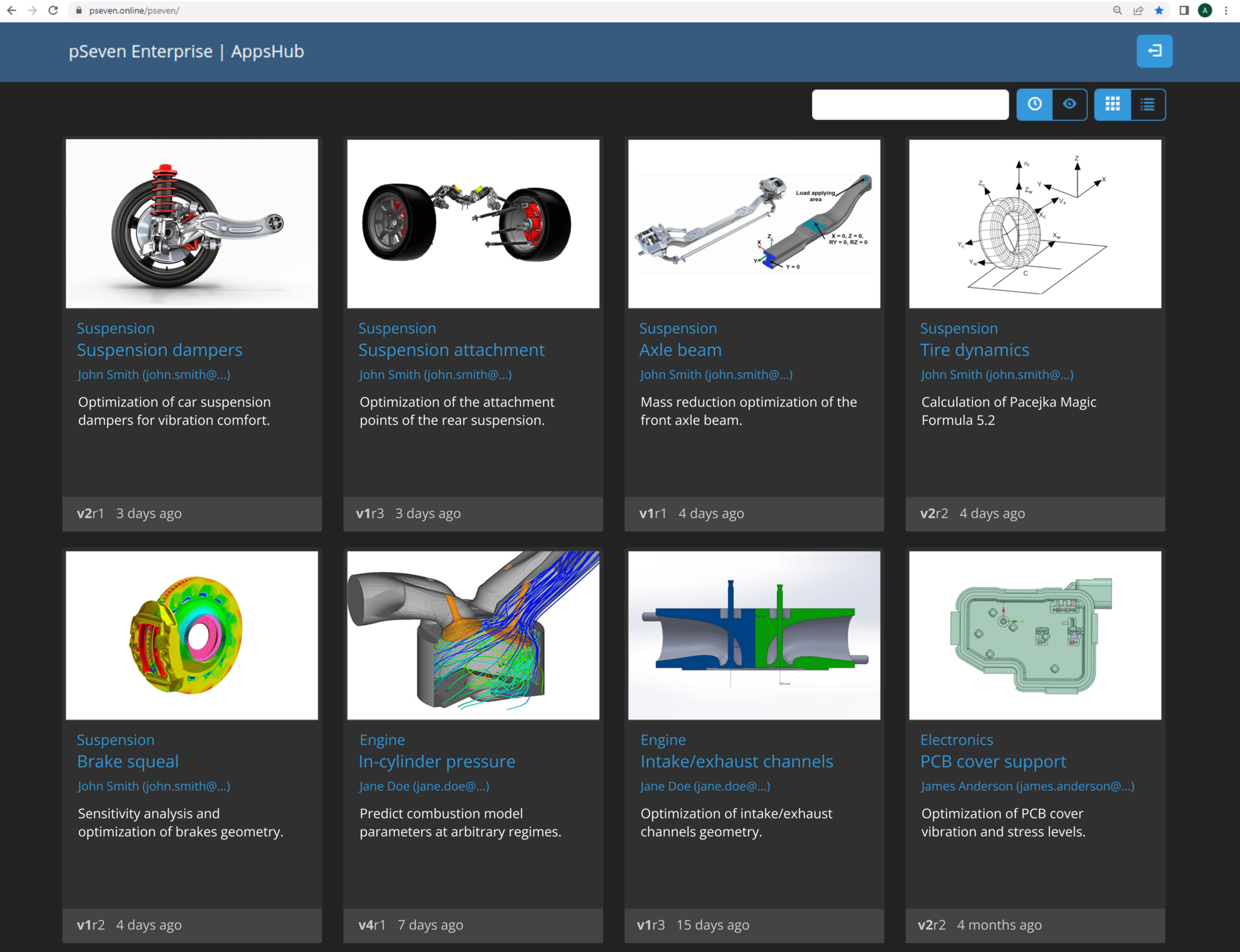

AppsHub

Launch apps in AppsHub as web services via REST API

sync_alt
workflow

Web apps execute underlying automated workflows in batch mode

Publications

P7UC2024 - Seamless integration of PDTec SPDM and pSeven for enhanced data storage solutions

Alexander Köppe, Technical Consultant, PDTec AG
pSeven User Conference 2024

P7UC2023 - The power of combining SPDM with engineering workflow automation

Michael S. Murgai, Executive Board Member, PDTec
pSeven User Conference 2023

P7UC2022 - 20 years of SPDM in production - towards a convergence of SPDM and PIDO

Mark Norris, CEng MIMechE MBA, theSDMconsultancy
pSeven User Conference 2022

P7UC2022 - Integration of automated engineering workflow with SPDM/SLM systems

Gaspard Berthelin, Application Engineer, DATADVANCE
pSeven User Conference 2022
